Exporting Characters with Animated Accessories Attached

If you want to convert a character with animated accessories or spring animations into FBX format for further usage, you can now export them together as a set instead of separately.

Step 1: Creating an Animated Accessory in iClone

  1. Prepare a prop in iClone.
  2. Use Key-framing or Prop Puppeteering methods to apply animations to the prop.

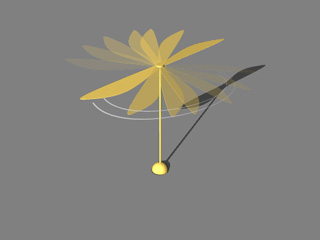

    Using the Prop Puppeteering method to create the rotation animation.

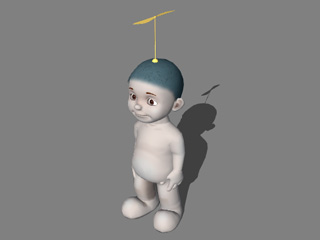

  3. Attach the prop to the character. This step turns the prop into an accessory.

Step 2: Export the Character with Accessory to 3DXchange

  1. Optionally add facial expressions or body motions to the character in iClone.
  2. Select the character and switch to the Actor >> Avatar page.

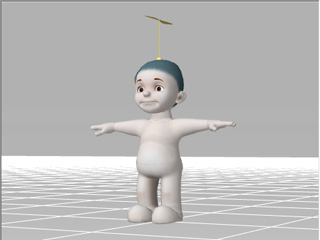

  3. Click the Edit in 3DXChange button in the Modify panel. The character and the accessory will be sent to 3DXchange.

Step 3: Exporting MotionPlus from iClone to 3DXChange

The accessory's animations and the character's body motions plus facial expressions can now be exported as MotionPlus format in three methods. In this case, the Collect Clip method is used. For more information about exporting MotionPlus, please refer to the Exporting Character with Body Motion and Expressions to 3D Tools and What is MotionPlus? sections.

  1. Go back to iClone.
  2. Open the Timeline.

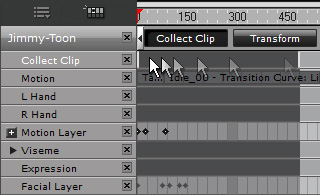

  3. Open the Collect Clip track of the character.
  4. Drag in the track to select a range for exporting.
  5. Right click within the range.

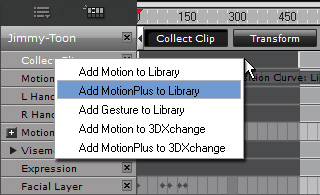

  6. Select the Add MotionPlus to Library command in the right-click menu.

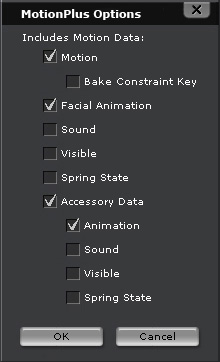

  7. Activate the Motion and Facial Animation boxes for the character-related motions and the Animation box under the Accessory Data item for including the accessory's animations. Click OK to save.

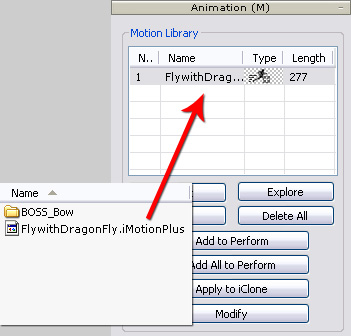

  8. Add the saved MotionPlus file into the Motion Library of 3DXchange.

    Note:

    • Please refer to the What is MotionPlus section for more information about the data that can be included in MotionPlus format.

Step 3: Export Body Motions and Facial Expressions as FBX

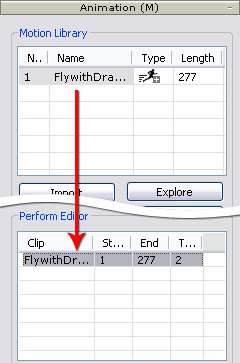

  1. Go to 3DXchange. Add the desired clips from the Motion Library to the Perform Editor.
  2. Export the character along with the motions as FBX files.
  3. Load the exported FBX files into your favorite 3D tools.

    The rendered video from Maya (with motion blur effect).

Creating Expressions with Accessories from Monster Pack

Since the animations of the accessories can be exported as described in previous section, you may use the accessories from the Reallusion Monster Workshop to create expressions or special animations for your unique monster in iClone and then export it via 3DXchange to external 3D tools.

  1. Assemble your unique monster with body part accessories (in this case, the wings, the eye and the skirt) in iClone.
  2. Animate these accessories to generate expressions or other animations. Please refer to the tutorial page for more information about how to puppeteer these accessories.
  3. Follow the work flow described in the previous section to convert your monster into FBX format.

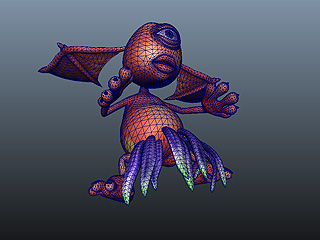

  4. Load the FBX file to your 3D tools and play to see the custom animations.

    The rendered video from Maya (with motion blur effect).
