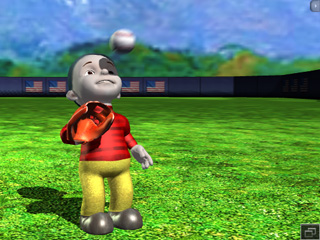

Performing with Sound to Enhance Dramatic Sensation

No matter how good the motions or expressions are, without sound effects, the dramatic feeling decreases drastically. By using the MotionPlus file, the sound effects can also be included so that the perform commands trigger the character to act with sounds, which greatly raise the dramatic sensations and the level of convincing.

Expressions with Sounds in Perform Command

In addition to the basic phonemes, real humans produce different sounds with their mouths and lips. To compliment the basic phonemes in iClone, you can also include sounds into characters' perform commands so that they are able to have more sounds with expressions than just the basic phonemes.

Preparing Data in iClone

1. In iClone, apply a character.

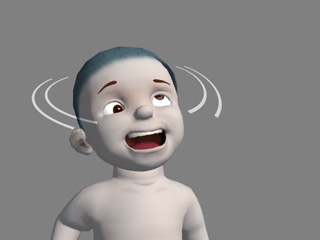

2. Generate head motions and facial expressions (either by facial puppeteering or expression templates) to the character (in this case, the character is hit in the head and gets dizzy afterward).
3. Go to the desired time frame that you wish to add the sound effect to match it with the facial expressions.
4. Select the character and scroll to the Sound Track section in Actor >> Avatar >> Modify Panel.

5. Click the Import button to load a prepared sound (in this case, the bird-chirping sound for the dizzy face).

6. Repeat that same steps at different time frame to add as many sounds effect as you can for the rest of the facial expressions.

Sending Data from iClone to 3DXchange

1. In iClone, select the character and click the Edit in 3DXchange button in the Modify Panel. The character will be sent to 3DXchange instantly.

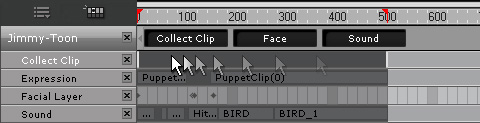

2. Open the Collect Clip track of the character and mark a range for the entire animation.

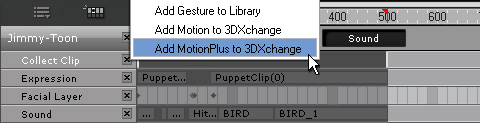

3. Right click within the range the select the Add MotionPlus to 3DXchange from the menu.


   Note:

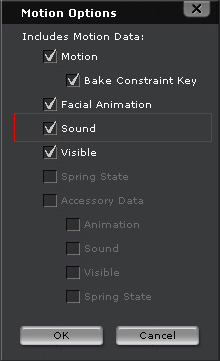

   You may choose the Add MotionPlus to Library command in the menu. However, you need to manually load the MotionPlus file into 3DXchange later on if you choose to do so. If you determine to save the MotionPlus file to a destination folder, then remember to activate the Sound box in the MotionPlus Option panel.

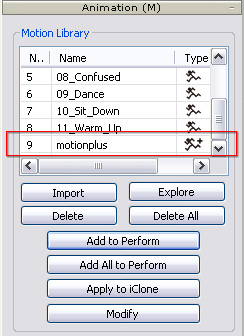

4. Go to 3DXchange, in the Motion Library, you will see one more items appended to the end of the original ones that the character has by default.

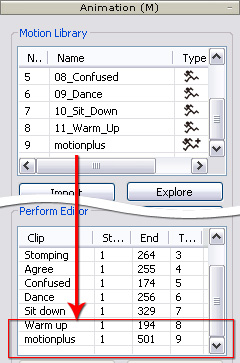

5. Add this MotionPlus clip into the Perform Editor. This step ensures the clip is added to the Perform list in the right-click menu of the character.

   (Optional) Double click on the Clip cell of the clip to rename it.

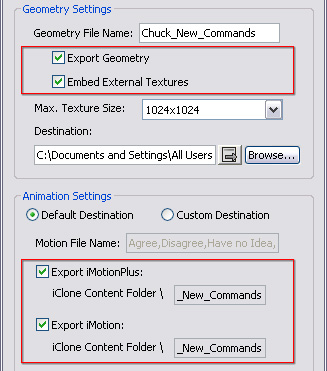

6. Export (Ctrl + E) the character to iClone. Make sure you include both the character and the MotionPlus clip.


Using New Perform Commands

1. Back to iClone.
2. Apply the newly exported character and right-click on it.
3. You will find the new commands listed in the Perform menu.

4. Utilize the new command to create an animation with sound effects.

Accessory Animations with Sounds in the Perform Menu

Accessories are also able to be given sound. The sound can be included into MotionPlus file as well. This allows the accessory motions to be enhanced with sound effects.

Preparing Data in iClone

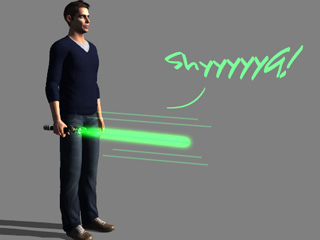

1. In iClone, apply a character. Attach an accessory to the character (in this case, a lightsaber).

2. Apply different motions to the character.

3. When the accessory is animated, it is often mute (in this case, when the lightsaber is on).

4. Go to the time frame where the accessory animates.

5. Select the accessory and scroll to the Sound Track section in Actor >> Accessory >> Modify Panel.

6. Click the Import button to load a prepared sound (in this case, the lightsaber-on sound).

7. Add more sound effects to the accessory in accordance with the motions of the character.

8. Play back to view the result, adjust the motions and the sounds accordingly.

Sending Data from iClone to 3DXchange

1. In iClone, select the character and click the Edit in 3DXchange button in the Modify Panel. The character will be sent to 3DXchange instantly.

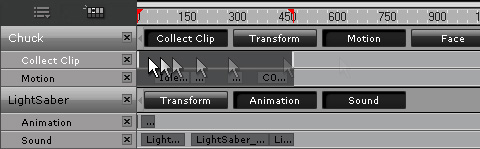

2. Open the Collect Clip track of the character and then make a range for the entire motion.

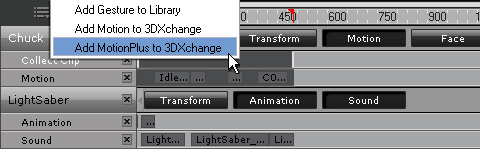

3. Right click within the range the select the Add MotionPlus to 3DXchange from the menu.


   Note:

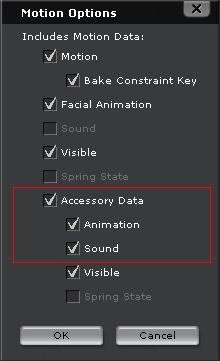

   You may choose the Add MotionPlus to Library command in the menu. However, you need to manually load the MotionPlus file into 3DXchange later on if you choose to do so. If you determine to save the MotionPlus file to a destination folder, then remember to activate the Accessory Data >> Sound boxes in the MotionPlus Option panel.

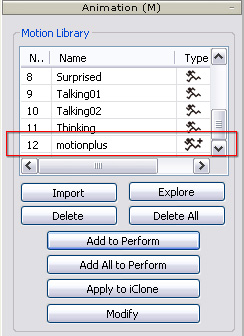

4. Go to 3DXchange, in the Motion Library, you will see one more items appended to the end of the original ones that the character has by default.

5. Add this MotionPlus clip into the Perform Editor. This step ensures the clip is added to the Perform list in the right-click menu of the character.

   (Optional) Double click on the Clip cell of the clip to rename it.

6. Export (Ctrl + E) the character to iClone. Make sure you include both the character and the MotionPlus clip.


Using New Perform Commands

1. Back to iClone.
2. Apply the new character that has just been exported and right click on it.
3. You will find the new command listed in the Perform entry.

4. Utilize the new command to have the character use the accessory with a sound effect.
