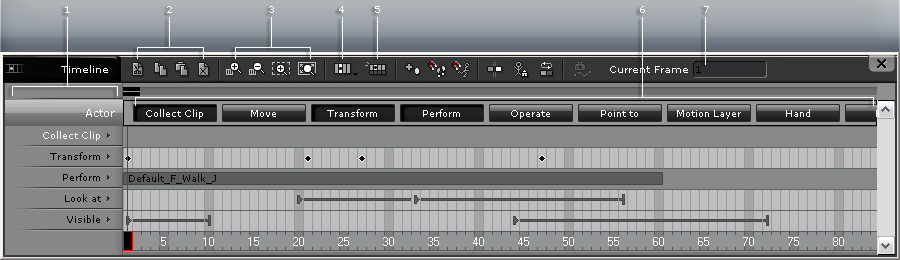

1 |
Track Name |
This panel shows an object's name and its sub track names. Single click on the name to select the object. Double click on the name to select all the data in the track. This is a quick switch to the target property editing panel - single click on the track name or the track itself. |
|
2 |
Cut/Copy/Paste/Delete |
Cut: Click the Cut button to cut the target key or clip into the clipboard. Copy and Paste: Click on the copy and paste button, or use hotkey Ctrl + C on selected keys or clips to copy, and Ctrl + V to paste to the target frame (single or multiple keys) Delete: Click on the Delete key or Delete button to delete highlighted keys or clips. |
|
3 |
Zoom in/out |
Click the Zoom in/out buttons to increase or decrease the time (cell) unit size. Click the Actual Size button to show the time unit represented as 60 frames per second. Click the Fit window button to view the whole timeline items within the timeline window space. |
|
4 |
Track list |
Click Track list drop-down list and check on/off track items to show/hide the individual track. |
|
5 |
Object-related track |
When you pick any object on the 3D viewer with this button down, the Timeline displays only the track of the picked object. |
|
6 |
Sub tracks |
Click these buttons to show/hide the corresponding tracks that belong to the picked object. |
|
7 |
Current Frame |
This field shows the current frame number when you click on the target frame on the timeline. You may also type in the frame number to jump to the target frame. This allows you to go to your precise target location; especially convenient for animation with clear timing control. |
