button to fit the wire frame to the face
automatically using the four basic anchor points for the eyes and mouth. The following auto-fitting
dialog box pops up.
The 4-point auto fitting for the four basic anchor points allows you to create a CrazyTalk model in a matter of a few mouse clicks. This process is entirely automatic and requires no complex frame fitting techniques. Once you create a basic frame to fit the face, you can use the fitting tools to increase the accuracy of the wire frame by adjusting the frame points with more precision.
Click the Face Fitting
button to fit the wire frame to the face
automatically using the four basic anchor points for the eyes and mouth. The following auto-fitting
dialog box pops up.

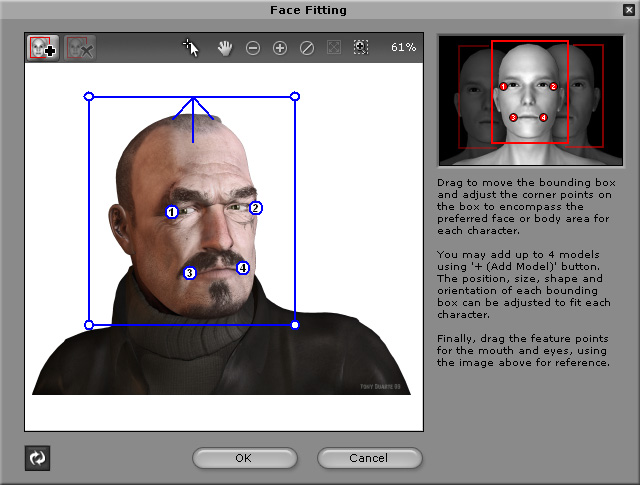

CrazyTalk shows its own estimation about the position of the four points defining the eye and mouth positions. If you are not satisfied with the positions, click and move the numbered indicators 1, 2, 3 and 4 on the image to adjust the four points for the fitting process as displayed on the sample image. Click the Reset button at any time to cancel your actions and start over.
|
Note: |
|
Adjust the four points as close to the correct position as possible to get the best fit for the eyes and mouth features. Do not worry about precise details at this time. Use the wire frame fitting tools for a more accurate wire frame to fit the face with the highest degree of precision. |
